Wifi LoRa v4 deep sleep current

#1

Hi!

Newbie here! I’m trying to reach μA deep sleep current on my Wifi Lora V4 card since it will be used off-grid and send data occasionally (once an hour approx.). However, despite my efforts the lowest I’ve managed to reach is 1,8mA (which is with a very minimal code which puts the ESP32 in deep sleep basically…).

Could someone help me, where should I begin to be able to lower the deep sleep power consumption?

NB: I power the card through the 2p battery connection with an 18650 battery.

BR
niklas

#2

Hi

Did you put all pins as deactivated ? Did your out Lora module to sleep?

#3

I actually managed, yesterday, to get down to 40microamp in deep sleep mode with a few modifications. Thanks anyway!

#4

Could you please share what exactly you did? I’m in the same situation and can’t get below about 715 uA. I’d LOVE to get to less than 100 :slight_smile:

#5

Sure! I’m not sure how to paste it in an indented, neat way but here’s the code!

#include <Arduino.h>
#include <RadioLib.h>
#include "esp_sleep.h"
#include "driver/gpio.h"

// === Heltec V4 pinout (officiellt) ===
#define RADIO_NSS   8
#define RADIO_RST   12
#define RADIO_BUSY  13
#define RADIO_DIO1  14

#define VEXT_PIN    36
#define LED_PIN     35

SX1262 radio = new Module(RADIO_NSS, RADIO_DIO1, RADIO_RST, RADIO_BUSY);

void VextOFF() {
  pinMode(VEXT_PIN, OUTPUT);
  digitalWrite(VEXT_PIN, HIGH);   // HIGH = OFF on Heltec
}

void ledOFF() {
  pinMode(LED_PIN, OUTPUT);
  digitalWrite(LED_PIN, HIGH);    // HIGH = OFF on Heltec
}

void go_to_sleep() {
  ledOFF();
  VextOFF();

  // Put SX1262 into sleep
  radio.sleep();

  // Keep NSS high and hold it during deep sleep
  pinMode(RADIO_NSS, OUTPUT);
  digitalWrite(RADIO_NSS, HIGH);
  gpio_hold_en((gpio_num_t)RADIO_NSS);
  gpio_deep_sleep_hold_en();

  Serial.println("GOING TO SLEEP NOW");
  Serial.flush();

  esp_deep_sleep_start();
}

void setup() {
  Serial.begin(115200);
  delay(2000);

  Serial.println("Init radio...");

  SPI.begin(9, 11, 10); // SCK, MISO, MOSI Heltec V4
  int state = radio.begin();

  if (state != RADIOLIB_ERR_NONE) {
    Serial.println("Radio init failed!");
  } else {
    Serial.println("Radio OK");
  }

  delay(1000);
  go_to_sleep();
}

void loop() {}
1 Like
#6

Thank you very much @vange80!

1 Like
#7

Hi,
I’m having a similar issue with deep sleep on a lora 32 V4 (Both no OLED and OLED vesions) . no matter what i do the lowest i can get the current draw is 7mA. Im pretty new to this and i even loaded the code above with the same result. I must be missing something? I need this thing to last 12months in an 18650 but i have no chance with that current draw in deep sleep.

HELP!

#8

Hi there,
I have a lora 32 V4 board as well and no matter what I do it draws about 8mA (seen in my power profiler).
@vange80 , I tried your code but still 8mA. You’re sure that’s all you did? Are there hardware revisions and some are bad. Did you change anything at the board?
I checked to start wifi only to disable it, checked for the external flash to be disabled, also tried to isolate all pins with something like that
for (gpio_num_t pin : RTC_PINS_TO_ISOLATE) {
rtc_gpio_isolate(pin);
}
initialised the radio only to put it to sleep, tried to hold the radio in reset while in sleep and what not.
But still the lowest I can get is 8mA with that board.

#9

Ok, I found it. gpio 7 controls the enable pin of U3 (power regulator for the RF front-end). This one needs to go low and stay low during deep sleep. That (together with all the other tips) brought me down to 17uA. My board is v4.3.1

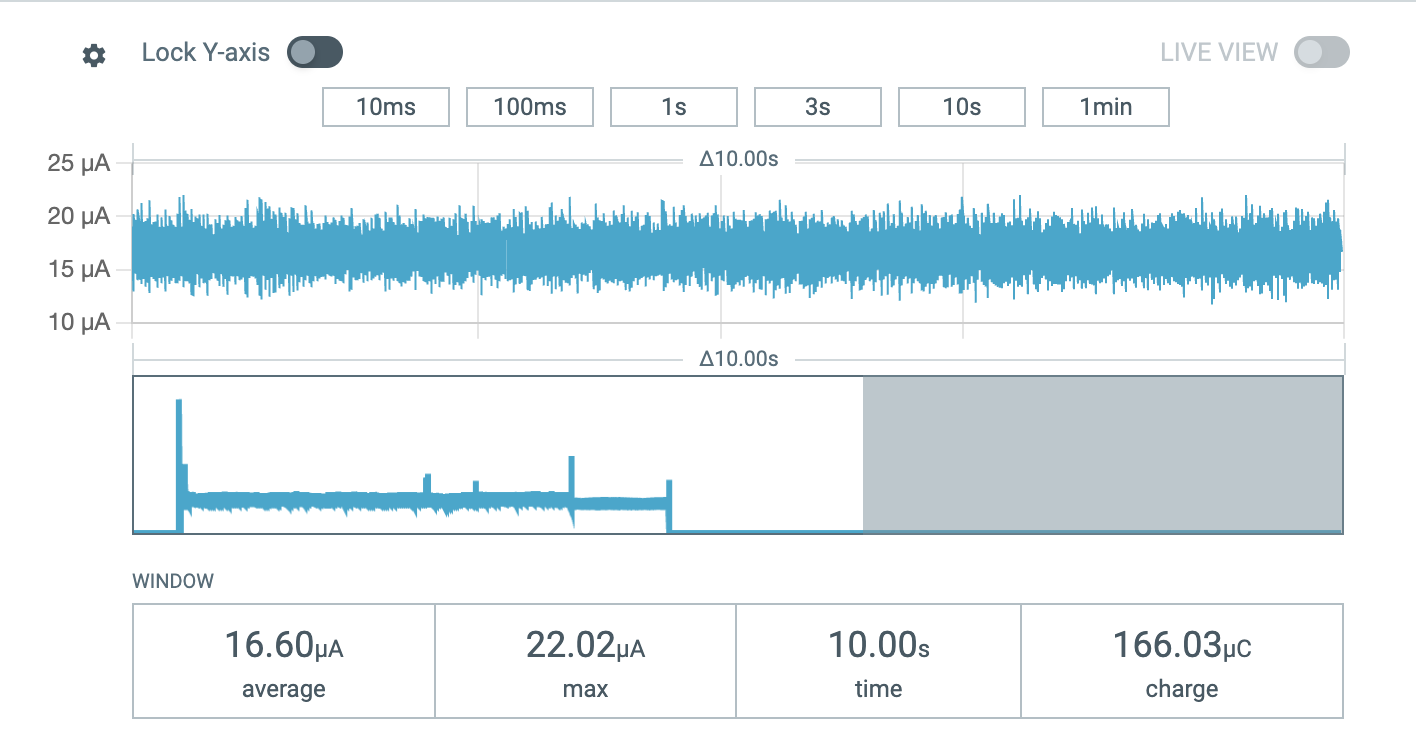

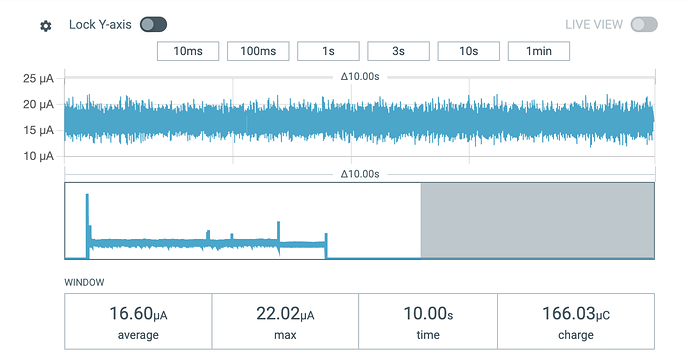

image.png1416×730 49.8 KB

#10

Here’s a bare minimum code to get the Wifi LoRa v4.3.1 below 20uA in deep sleep.

#include <Arduino.h>
#include <RadioLib.h>
#include "esp_sleep.h"
#include "driver/gpio.h"


// === Radio Pins ===
#define RADIO_VFEM  7
#define RADIO_NSS   8
#define RADIO_RST   12
#define RADIO_BUSY  13
#define RADIO_DIO1  14

// ---- Display pins -----------------------------------------
#define VEXT_PIN 36
#define LED_PIN 35

SX1262 radio = new Module(RADIO_NSS, RADIO_DIO1, RADIO_RST, RADIO_BUSY);

void go_to_sleep(uint64_t sleepUs) {

  radio.sleep(); //  Put SX1262 into sleep
  //  Keep NSS and RST high and VFEM low and hold it during deep sleep
  pinMode(RADIO_NSS, OUTPUT);
  digitalWrite(RADIO_NSS, HIGH);
  pinMode(RADIO_RST, OUTPUT);
  digitalWrite(RADIO_RST, HIGH);
  pinMode(RADIO_VFEM, OUTPUT);
  digitalWrite(RADIO_VFEM, LOW);
  pinMode(VEXT_PIN, OUTPUT);
  digitalWrite(VEXT_PIN, HIGH);
  gpio_hold_en((gpio_num_t)VEXT_PIN);
  gpio_hold_en((gpio_num_t)RADIO_NSS);
  gpio_hold_en((gpio_num_t)RADIO_VFEM);
  gpio_hold_en((gpio_num_t)RADIO_NSS);
  gpio_deep_sleep_hold_en();    // keep the pins state while sleeping

  esp_sleep_enable_timer_wakeup(sleepUs);
  esp_deep_sleep_start(); // sleeps with aprox 15.5uA at 5V and 13.8uA at 3.3V
}

void setup() {
  setCpuFrequencyMhz(80);  // saves a lot of current while running

  gpio_deep_sleep_hold_dis();
  gpio_hold_dis((gpio_num_t)RADIO_VFEM);
  gpio_hold_dis((gpio_num_t)RADIO_NSS);
  gpio_hold_dis((gpio_num_t)RADIO_RST);
  gpio_hold_dis((gpio_num_t)VEXT_PIN);

  int state = radio.begin();  // needed to get it to sleep later

  // ======== do your stuff =========

  go_to_sleep(5000000);
}

void loop() {

}
